Carton Box Packing Machine – The Ultimate Guide

Carton box packing machines have quietly reshaped how businesses protect, present, and distribute their products. From moisturizers to medical vials, these agile workhorses fold, load, and seal cartons with speed, accuracy, and finesse - far beyond what manual labor can accomplish.Zhejiang Haizhong Machinery Co.,Ltd., backed by two decades of research and CE-cGMP compliance, delivers equipment that streamlines pharmaceutical, cosmetic, food, and commodity production lines on six continents.If you want spotless carton integrity, lower unit costs, and consistent branding, this guide unpacks everything you need to know: machine anatomy, material science, selection tactics, and long-term care. Dive in and discover how to elevate your packaging floor from routine to remarkable.

Decoding the Modern Carton Box Packing Machine

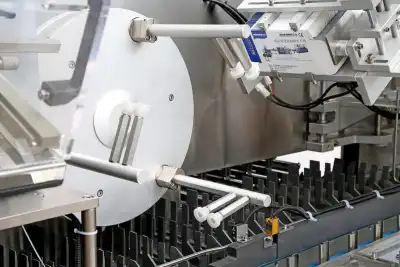

Anatomy: From Feeder to Final Seal

A modern cartoning system operates with seamless precision across five key stations: carton magazine, erecting plunger, product insertion, flap closure, and print-inspection. Each stage is meticulously synchronized using servo drives, ensuring that each panel is creased at the perfect moment. Vision sensors continuously monitor for misaligned graphics, correcting errors before the glue solidifies. This process ensures not only perfectly formed corners and minimal waste, but also guarantees compliance with regulatory standards, as every lot code is traceable for full transparency.

Technology Trends Transforming Cartoning

Modern HMIs are revolutionizing the production process by storing recipe parameters for hundreds of SKUs, reducing changeover times from hours to mere minutes. Tool-less guide rails and augmented-reality diagnostics make it easy for operators, even those with minimal technical experience, to manage operations efficiently. AI-driven rejection systems continually improve, reducing false rejects while ensuring genuine defects are identified. For eco-conscious brands, carton box packing machines are compatible with water-based adhesives and can handle biodegradable board grades without causing warping, supporting sustainability efforts.

​​​​​​​

Industry-Specific Configurations

- Pharmaceutical lines rely on intermittent motion, ensuring leaflet folding and tamper-evident sealing comply with EU MDR and FDA 21CFR Part11.

- Cosmetics favor continuous-motion models with glueless tuck flaps to prevent fragrance contamination.

- Snack food producers often pair flow-wrapped packs with a horizontal autoload cartoner to meet supermarket shelf-ready demands.

Strategic Considerations Before You Invest

Throughput & Future Scalability

To ensure long-term operational efficiency, it's crucial to match nominal speed not just to current demand but also to anticipated growth. With a baseline speed of 120 cartons per minute, incorporating the option for dual infeed upgrades provides flexibility for future scaling, protecting capital expenditure from becoming obsolete. Additionally, it's essential to verify that the frame rigidity and drivetrain torque are capable of supporting heavier SKU variants without requiring a complete system overhaul, ensuring smooth adaptability to evolving production needs.

Material & Carton Design Compatibility

Before making a purchase, it's essential to verify the board caliper tolerance, varnish type, and window patching to ensure they meet the desired quality standards. Zhejiang Haizhong's modular forming heads are designed to accommodate a range of materials, including 250-450gsm SBS, recycled kraft, and plant-fiber hybrids, offering versatility in packaging solutions. Additionally, requesting a Carton Handling Report that simulates your dieline geometry - such as ears, fifth panels, or lock bottoms - helps identify potential issues like micro-cracking at the hinge score, ensuring a smoother production process.

Regulatory & Digital Integration Needs

Pharmaceutical serialization, GS1 2D codes, and cosmetic batch tracing all require an open PLC architecture to ensure seamless integration across systems. With Ethernet/IP or PROFINET connectivity, the carton box packing machine can easily communicate with MES or ERP suites, providing real-time data for end-to-end process visibility. Certifications such as CE, ISO9001, and CGMP are more than just regulatory requirements - they significantly reduce validation times and facilitate smoother customs clearance, particularly when shipping products across international borders. These standards help streamline operations and ensure compliance on a global scale.

Maximizing Uptime: Operation, Maintenance & ROI

Operator-Centric Workflow

To minimize setup variance, utilize color-coded change-part carts, laser-etched height gauges, and one-touch recipe recall systems, all of which streamline the process and reduce errors. Implementing skill matrices helps identify and track operator capabilities, ensuring the right personnel are assigned to each task. Cross-training two operators per shift not only improves workforce flexibility but has been shown to reduce unscheduled downtime by 18%, enhancing overall productivity and efficiency across the production line.

Predictive Maintenance & Spare Strategy

Smart sensors continuously monitor key parameters such as motor current, vibration, and lubricant viscosity, providing real-time data that is sent to a cloud dashboard. This system triggers early alerts, preventing potential issues like shaft overheating or belt damage before they escalate. To ensure minimal downtime, a 2% parts inventory, including bearings, vacuum cups, and photocells, is kept on hand. Additionally, the carton box packing machine plays a critical role in streamlining packaging processes. Zhejiang Haizhong further optimizes operations with its 48-hour global courier policy, reducing lead times and avoiding costly air freight premiums.

Continuous Improvement & Sustainability

Lean audits frequently uncover areas of over-specification, such as the use of unnecessarily thick carton blanks. By reducing board weight by just 20gsm, businesses can cut costs by up to 8% annually while also lowering CO₂ emissions per package. Additionally, retrofitting machines with energy-efficient servo drives can significantly reduce power consumption. These upgrades typically pay for themselves within a year, offering long-term savings on energy costs while improving overall operational efficiency.

Conclusion

An optimized carton box packing machine strikes the perfect balance between speed, precision, and regulatory compliance, enhancing brand value while driving down operational costs. Whether you're introducing a new nutraceutical product line or expanding a growing vegan snack brand, investing in a flexible, future-proof cartoner ensures long-term production agility. This investment not only supports scaling operations but also positions your business to quickly adapt to market changes and consumer demands, securing efficiency and competitiveness for years to come.

Contact Us

Ready to elevate your packaging line with a carton box packing machine? Reach out to the Haizhong engineering team at [email protected] for feasibility studies, sample runs, and ROI projections.

References

Yam, K.L., & Lee, D.S. (2018). Emerging Food Packaging Technologies: Principles and Practice. Academic Press.

Patel, P. (2020). Pharmaceutical Packaging Handbook. CRC Press.

ISO9001:2015 Quality Management Systems - Requirements. International Organization for Standardization.

European Committee for Standardization (2021). EN415-3 Safety of Packaging Machines - Cartoning Machines.

Mejía, C. (2019). Lean Manufacturing in the Packaging Industry. Packaging Digest White Paper.

GS1 Global. (2022). Application Standards for Serialization and Traceability in Healthcare.
