How Does a Pharma Blister Packaging Machine Work Step by Step?

A pharma blister packaging machine is a sophisticated piece of equipment designed to efficiently package pharmaceutical products in individual blisters. The process begins with the formation of plastic cavities, followed by the precise placement of tablets or capsules into these cavities. Next, a foil backing is applied and heat-sealed to create a secure package. The machine then cuts and perforates the blister strips, ensuring easy separation for end-users. Advanced models may incorporate additional features such as printing lot numbers and expiration dates. This automated system not only enhances productivity but also maintains the integrity and safety of pharmaceutical products throughout the packaging process.

The Intricacies of Blister Pack Formation

Thermoforming Process

The blister pack manufacturing process begins with thermoforming, where a continuous roll of plastic film such as PVC or PET is carefully fed into the blister packaging machine. The film is gradually heated until it reaches a pliable state, allowing it to be shaped accurately using a precision forming tool. At this stage, the cavities are molded to match the exact size, depth, and dimensions required for the pharmaceutical products, ensuring both proper containment and patient usability.

Cooling and Solidification

Once the cavities are thermoformed, the next critical step in a pharma blister packaging machine is cooling and solidification to maintain the blister structure. This stage ensures that the plastic material retains its shape, durability, and dimensional accuracy. Depending on the pharma blister packaging machine’s design and material type, cooling may be achieved through chilled air circulation or water-based cooling systems. Proper solidification is essential to preserve cavity integrity, preventing warping or deformation, and preparing the blister packs for downstream processes such as product filling and sealing.

Quality Control Measures

Modern blister packaging machines are equipped with advanced quality control systems to guarantee the accuracy and reliability of the formed cavities. High-resolution vision inspection technologies automatically scan each blister to detect irregularities such as incomplete forming, air bubbles, or surface defects. These systems help ensure that only blisters meeting strict quality standards proceed further in the packaging line. By integrating automated monitoring, manufacturers enhance consistency, reduce waste, and ensure compliance with stringent pharmaceutical packaging regulations.

Precision Product Placement and Sealing

Automated Tablet Feeding

After the blister cavities are fully formed and cooled, pharmaceutical products must be placed accurately into each pocket. Automated feeding systems are commonly used to accomplish this task with high precision and speed. These systems may include vibrating hoppers, rotating discs, or specialized pick-and-place mechanisms that guide tablets or capsules into the cavities. By automating this process, manufacturers reduce the risk of human error, minimize product breakage, and ensure uniform distribution, ultimately improving efficiency and overall packaging quality.

Fill Check Technology

To guarantee accuracy, an advanced pharma blister packaging machine integrates fill check technology, which verifies that each cavity contains the correct dosage form. This verification may be performed using weight-based sensors, optical cameras, or vision inspection systems capable of detecting missing or incorrectly placed tablets. Any cavity that fails inspection can be automatically rejected or flagged for correction. Incorporating this technology provides an added layer of quality assurance, ensuring that only properly filled blisters proceed to the sealing stage, thereby enhancing patient safety.

Foil Application and Sealing

Once the cavities are filled and verified, the next critical step is applying a protective cover material, typically aluminum foil or laminated film. The sealing process involves using controlled heat and pressure to bond the foil securely to the plastic base, creating an airtight and tamper-resistant enclosure. This hermetic seal prevents exposure to moisture, oxygen, and light, all of which can degrade pharmaceutical products. Reliable sealing not only preserves product efficacy and shelf life but also ensures compliance with regulatory packaging standards.

Final Stages: Finishing and Quality Assurance

Perforation and Cutting

After the sealing process is complete, the continuous strip of blister packs advances to the perforation and cutting station. At this stage, precision tools create easy-tear lines between individual blisters, enabling patients to separate doses conveniently without damaging the packaging. The machine then cuts the strip into the required layout, whether as single-dose packs or larger multi-dose sheets. This step not only ensures user-friendliness but also provides flexibility in meeting diverse pharmaceutical distribution and patient compliance requirements.

Printing and Labeling

Modern pharma blister packaging machines often feature integrated printing and labeling systems, allowing vital product details to be applied directly onto the foil backing. Information such as product name, dosage instructions, batch numbers, and expiration dates is printed with high clarity to meet regulatory standards. Advanced technologies also enable serialization and the application of unique identifiers, supporting global track-and-trace regulations. By incorporating these features, manufacturers improve patient safety, facilitate supply chain transparency, and ensure compliance with stringent pharmaceutical labeling requirements.

Final Inspection and Packaging

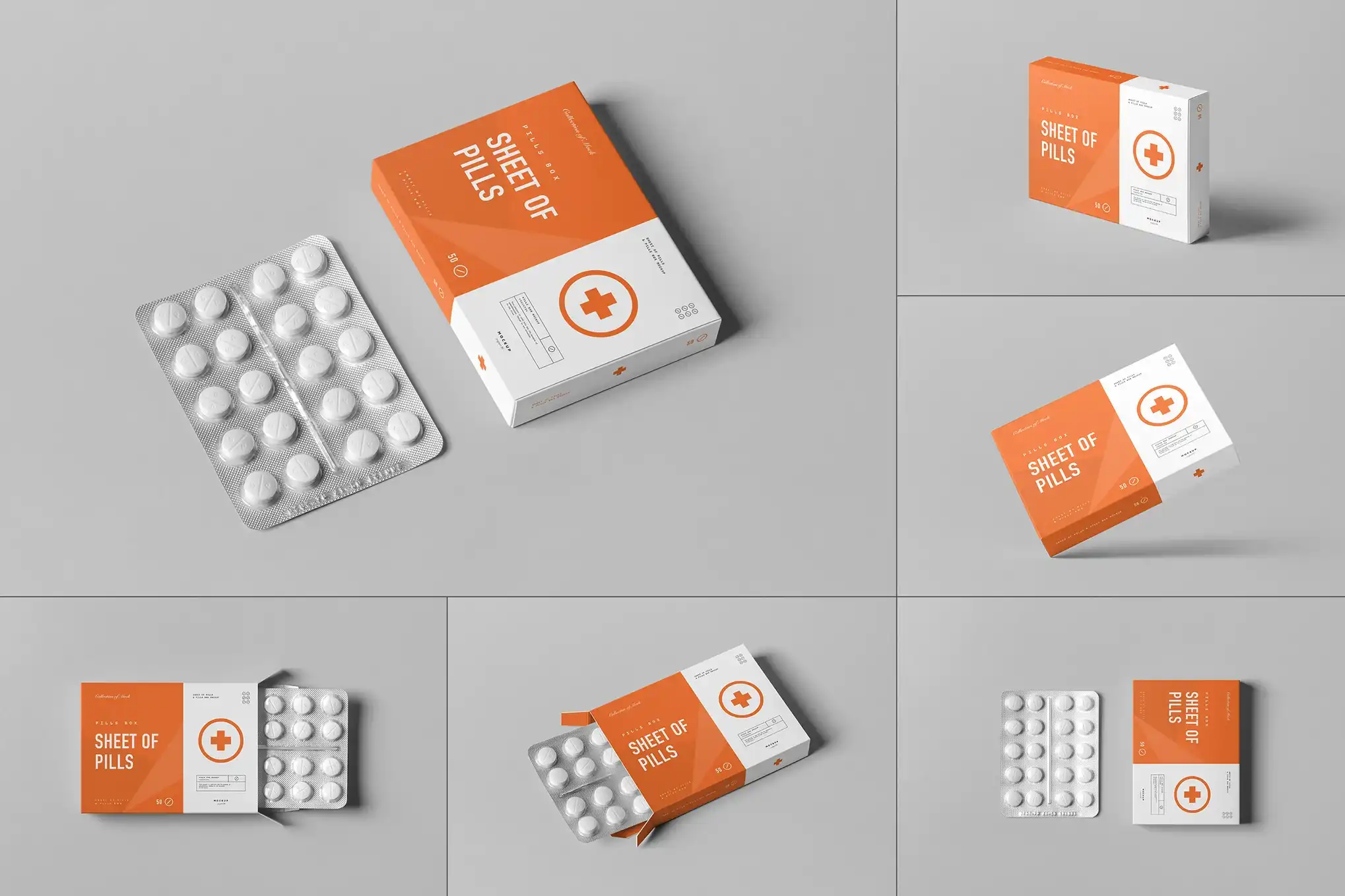

Before blister packs are released from the production line, they undergo a rigorous final inspection to verify quality and safety. This may include visual checks for defects, weight verification to confirm accurate filling, or advanced methods such as X-ray or vision inspection to detect hidden issues. Only packs that pass these tests proceed to secondary packaging, where they are inserted into cartons or other protective containers. This final step guarantees that patients receive safe, reliable, and fully compliant pharmaceutical products.

Conclusion

The pharma blister packaging machine is a marvel of modern engineering, seamlessly integrating multiple processes to produce safe, reliable, and user-friendly medication packaging. From the initial formation of plastic cavities to the final quality checks, each step is designed with precision and efficiency in mind. As pharmaceutical packaging demands continue to evolve, these machines adapt, incorporating new technologies and features to meet industry standards and consumer needs. Understanding the intricacies of this process not only appreciates the technology but also underscores the commitment to quality and safety in pharmaceutical packaging.

FAQs

What materials are commonly used in pharma blister packaging?

Common materials include PVC, PET, and aluminum foil. The choice depends on the drug's sensitivity to moisture and light.

How fast can a pharma blister packaging machine operate?

Modern machines can package hundreds of blisters per minute, with some high-speed models reaching up to 1500 blisters per minute.

Are blister packs environmentally friendly?

While traditionally challenging to recycle, new eco-friendly materials and designs are being developed to improve sustainability.
