Is It Possible to Integrate Blister and Cartoning in One Line?

Absolutely! Integrating blister packaging machines and cartoning processes into a single production line is not only possible but increasingly common in modern pharmaceutical and consumer goods manufacturing. This innovative approach, known as an integrated blister and cartoning line, streamlines operations by combining two crucial packaging steps. By merging blister formation and sealing with subsequent cartoning, manufacturers can achieve higher efficiency, reduced footprint, and improved product flow. This integration eliminates the need for intermediate storage and handling, minimizing the risk of product contamination and damage while significantly boosting overall packaging line productivity.

The Evolution of Integrated Packaging Solutions

Traditional Separate Processes vs. Integrated Systems

In the past, blister packaging and cartoning were treated as separate stages within a manufacturing facility. These operations were often located in different areas, requiring manual transfer of products between machines. This separation increased labor requirements, extended production time, and demanded more floor space. The development of integrated packaging systems has transformed this workflow by combining blister forming and carton filling into a continuous process. This seamless integration reduces handling steps, streamlines operations, and optimizes the use of available space and resources.

Technological Advancements Enabling Integration

Recent innovations in packaging technology have made it feasible to link blister packaging machines directly with cartoning equipment. Key advancements such as sophisticated control systems, precise servo motors, and intelligent software enable real-time synchronization of different packaging stages. These technologies ensure smooth product transfer, reduce downtime, and maintain consistent output quality. Integration is further enhanced by automated quality checks and sensors that monitor performance, allowing manufacturers to achieve higher efficiency and reliability across the entire packaging line.

Benefits of Combining Blister and Cartoning Operations

Integrating blister packaging and cartoning processes delivers significant advantages to manufacturers. Labor costs decrease as fewer manual handling steps are needed, and product damage risks are minimized through reduced transfers. Quality control improves due to consistent and controlled workflows. Additionally, the overall manufacturing footprint shrinks since integrated systems require less floor space. These lines also offer enhanced flexibility, allowing rapid changeovers between product types and packaging formats, which helps manufacturers respond quickly to market demands and improve production agility.

Key Components of an Integrated Blister and Cartoning Line

Blister Formation and Sealing Unit

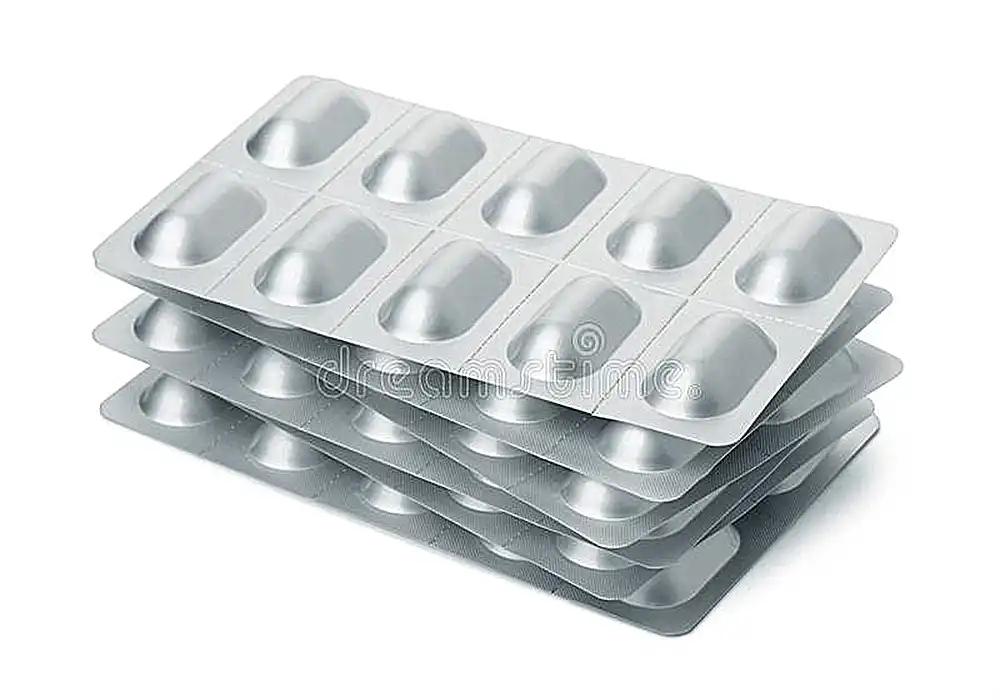

The core component of an integrated blister and cartoning line is the blister packaging machine itself. This unit forms cavities in plastic or aluminum foil tailored to hold specific products securely. It then fills these cavities with the product before sealing them with a backing material, typically foil or paperboard. Advanced blister machines offer the flexibility to work with a wide range of materials and product shapes, accommodating diverse packaging needs and ensuring consistent quality and product protection throughout the packaging process.

Transfer Mechanism

An essential part of the integrated packaging line is the transfer mechanism that smoothly moves the sealed blister packs from the blister machine to the cartoning unit. This system must operate with high precision and gentle handling to avoid damaging the blisters or disturbing their contents. Proper synchronization and timing are critical to maintain a steady flow and prevent bottlenecks. The transfer mechanism often incorporates sensors and guides to ensure accuracy and reduce the risk of misalignment during the transition between stages.

Cartoning Module

The cartoning module completes the packaging process by erecting cartons, inserting the blister packs, and sealing the finished packages. Modern cartoning machines are often equipped with advanced vision systems that perform real-time quality checks to detect defects or misplacements. These modules are designed to handle a variety of carton styles and sizes, offering versatility to accommodate different product lines. Efficient cartoning units contribute significantly to overall line speed, packaging consistency, and product presentation.

Optimizing Performance in Integrated Packaging Lines

Synchronization and Speed Matching

Efficient operation in integrated packaging lines depends on precise coordination between the blister packaging machine and the cartoner. When both run at matched speeds, products move seamlessly without causing bottlenecks or idle stages. This smooth flow not only increases output but also minimizes equipment strain, leading to more consistent performance and reduced downtime.

Quality Control Measures

To maintain product accuracy and integrity, integrated lines often feature in-line inspection tools like vision systems, weight sensors, and metal detectors. These technologies quickly detect issues such as missing products, incorrect counts, or contamination, ensuring only fully compliant packs are sent forward. This reduces waste and upholds high-quality standards.

Flexibility and Quick Changeovers

Modern integrated lines are engineered for adaptability, allowing operators to switch swiftly between different packaging formats and configurations. This flexibility is essential for manufacturers managing varied product lines or short production runs, as it minimizes downtime, maximizes efficiency, and enables faster responses to changing market requirements.

Conclusion

Integrating blister packaging machines and cartoning processes into a single line represents a significant advancement in packaging technology. This approach offers numerous benefits, including increased efficiency, reduced labor costs, and improved product quality. As manufacturers continue to seek ways to optimize their operations, integrated blister and cartoning lines are becoming an increasingly attractive solution. By streamlining the packaging process, these systems help companies meet the demands of modern production environments while maintaining the highest standards of product protection and presentation.

FAQs

What are the main advantages of integrating blister and cartoning in one line?

The primary benefits include increased efficiency, reduced labor costs, minimized product handling, enhanced quality control, and a smaller manufacturing footprint.

Can integrated lines handle different blister and carton sizes?

Yes, modern integrated lines are designed for flexibility and can typically handle various blister formats and carton sizes with quick changeovers.

How does integration affect product quality?

Integration typically improves product quality by reducing handling and incorporating advanced quality control measures throughout the packaging process.

Experience the Future of Packaging with Haichina

At Haichina, we're at the forefront of integrated packaging solutions. Our state-of-the-art blister and cartoning lines offer unparalleled efficiency and flexibility for pharmaceutical and consumer goods manufacturers. With our CE, cGMP, and ISO 9001 certified equipment, you can trust in the quality and reliability of our packaging systems. Experience the Haichina difference – where innovation meets precision in packaging technology. Contact our expert team at [email protected] to explore how our integrated packaging solutions can revolutionize your production line.
